Kappa-9M Model Rocket Kit (18mm Version)

SKU:
KK9M-18



Retail Price: $21.95
ASP Price: $18.95 each
You Save $3.00!

Quantity:

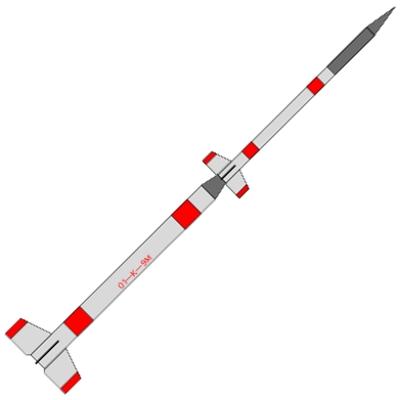

The Kappa 9M is a two - stage Japanese sounding rocket. The first Kappa 9M (K - 9M - 1) was flown on November 12, 1962.

This newly updated single-stage scale model features laser-cut basswood fins, balsa nose cone, balsa transition, quick-change engine hook and decals. Instructions have been totally updated and rewritten as well! This is a sharp looking model that's also fairly easy to build.

Length: 25.5"/64.8 cm
Diameter: .976"/24.8 mm
Weight: 1.35 oz/38 gm
12" Parachute Recovery
Scale: approx. 1/16.9
Skill Level: Beginner/Intermediate
Center of Pressure: 21.3" from tip of nose
Recommended Engines: A8 - 3; B4 - 4; B6 - 4; C6 - 5; D21 - 7

What you'll need to build this model:

Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Other adhesives [epoxy, cyanoacrylate, etc.] may be used if you are familiar with their use and prefer them.); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Masking Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint (such as Testors or Krylon is recommended, do not mix brands/types without testing) - Primer (optional, but recommended), White (optional, but recommended), Aluminum, Steel (note: silver may be used in place of the aluminum and steel, see Step # 14), Fluorescent Red and (optionally) Clear (flat clear preferred).
Recommended, but not required: Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Solv-A-Set or Super Set).

What else you'll need to fly this model:

Electronic launch system; launch pad with 1/8" launch rod; recovery wadding; engines (see list of recommended engines above).
