Black Brant Combo Pack of Three Scale Model Rocket Kits
Combo package of three of our Black Brant kits: Black Brant IV and Black Brant VB (for 24mm engines) and Black Brant III (for 13mm engines).

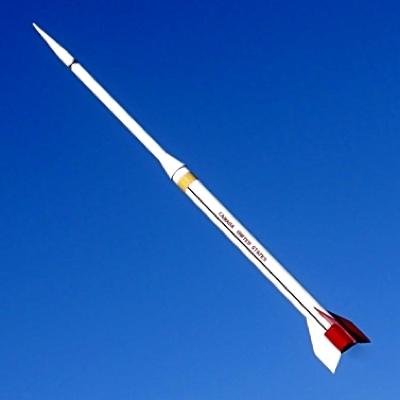

The Black Brant IV is a Canadian sounding rocket designed to launch payloads to over 500 miles high. First flown in 1964, the two-stage rocket was used into the 1980's. Over fifty flew from launch sites all over the world, including Peru, Spain, Norway, Greenland, and the U.S. among others.
This single-stage scale kit is nearly three feet tall and features a balsa transition and hard balsa nose cone, laser-cut fins, water-slide and self-adhesive decals and quick-change engine hook. You can fly this model on a wide range of engines, with fairly low altitudes on a C, but practically out-of-sight flights on an E! Designed primarily for 24mm C, D & E engines, it can also be flown on selected 18mm engines with an adapter (not included). A bright metallic parachute returns it to the ground for flight after flight.
Specifications:
Length: 34.65"/88 cm
Diameter: 1.385"/35.2 mm
Weight: 3.9 oz/110 gm
18" Parachute Recovery
Scale: approx. 1/12.5 (0.080)
Skill Level: Intermediate
Requires 3/16" Launch Rod
Center of Pressure: 19" from tip of nose
Recommended Engines: C11-3; D12-5; E9-6; E15-7; E20-7; F44-8; with EA 18/24 Adapter (not included): C6-3; C12-4; D16-6; D21-7
What you'll need to build this model:
Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Thin Cyanoacrylate [“CA”] is recommended for the parachute construction, but not required. Other adhesives [epoxy, CA, etc.] may be used if you are familiar with their use and prefer them.); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Felt Tip Marker; Masking Tape; Double-sided Cellophane ("Scotch") Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint (such as Rust-Oleum, Krylon, or Testors is recommended. Be sure not to mix different types or brands of paint without testing.) - primer (optional), white, black, red, silver & clear.
Recommended, but not required: Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Micro-Set or Micro-Sol).

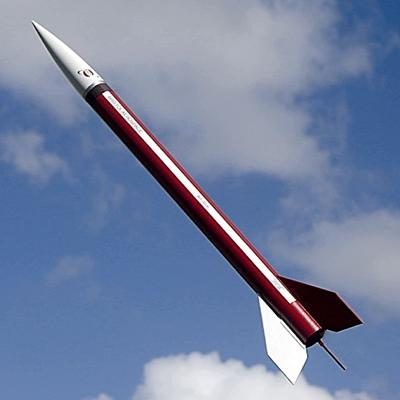

The Black Brant VB is a Canadian sounding rocket designed to launch payloads to an altitude of 200 miles. First flown in 1965, over 180 have flown from launch sites all over the world.
The Black Brant VB has long been a favorite of scale modelers. This new scale kit is over two and a half feet tall and features a balsa nose cone, laser-cut basswood fins, water-slide decals and quick-change engine hook. Designed primarily for 24mm C, D & E engines, it can also be flown on selected 18mm engines with an adapter (not included). A bright metallic parachute returns it to the ground for flight after flight.
Specifications:
Length: 25.9"/65.8 cm
Diameter: 1.385"/35.2 mm
Weight: 3.5 oz/99 gm
18" Parachute Recovery
Scale: approx. 1/12.5 (0.080)
Skill Level: Intermediate
Requires 3/16" Launch Rod
Center of Pressure: 18.75" from tip of nose
Recommended Engines: C11-3; D12-5; E9-6; E12-6; E15-7; E20-7; F44-8; with an 18/24 Adapter (not included): D16-6
What you'll need to build this model:
Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Thin Cyanoacrylate [“CA”] is recommended for the parachute construction, but not required. Other adhesives [epoxy, CA, etc.] may be used if you are familiar with their use and prefer them.); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Felt Tip Marker; Masking Tape; Double-stick Cellophane ("Scotch") Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint (such as Rust-Oleum, Krylon, or Testors is recommended. Be sure not to mix different types or brands of paint without testing.) - primer (optional), white, red, brown & clear.
Recommended, but not required: Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Micro-Set or Micro-Sol).
What else you'll need to fly these models:
Electronic launch system; launch pad with 3/16" launch rod; recovery wadding; engines (see lists of recommended engines above).

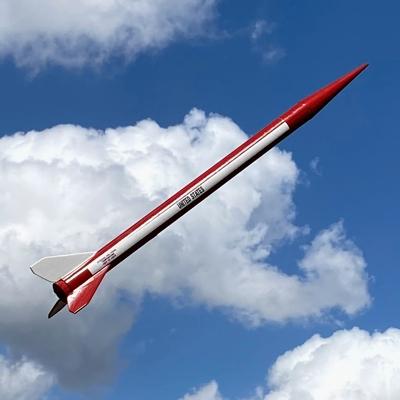

The Black Brant III was a sounding rocket built by Bristol of Canada and designed to carry payloads to an altitude of over 100 miles. The first flights took place in June, 1962 at Wallops Island, VA. There were nearly 70 Black Brant III flights between that time and when the last one flew in 1985.
Like other vehicles in the Black Brant family, the Black Brant III has long been a favorite of scale modelers. This new scale kit is designed for 13mm "mini" engines, and features a hard balsa nose cone, laser-cut basswood fins, water-slide decals and parachute recovery.
Specifications:
Length: 16.65"/42.3 cm
Diameter: 0.785"/19.9 mm
Weight: 0.85 oz/24 gm
9" Parachute Recovery
Scale: approx. 1/13 (0.077)
Skill Level: Beginner/Intermediate
Center of Pressure: 12.85" from tip of nose
Recommended Engines: 1/2A3-2T; A3-4T; A10-3T
What you'll need to build this model:
Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Thin Cyanoacrylate (CA) is recommended for some steps. Other adhesives [epoxy, cyanoacrylate, etc.] may be used if you are familiar with their use and prefer them); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Masking Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint Rust-Oleum, Krylon, or Testors is recommended. Be sure not to mix different types or brands of paint without testing.) - primer (optional), white, red & clear (optional).
Recommended, but not required: Thin Cyanoacrylate (CA) Glue; Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Micro Set or Micro Sol).
What else you'll need to fly this model:
Electronic launch system; launch pad with 1/8" launch rod; recovery wadding; engines (see list of recommended engines above).
The Black Brant IV is a Canadian sounding rocket designed to launch payloads to over 500 miles high. First flown in 1964, the two-stage rocket was used into the 1980's. Over fifty flew from launch sites all over the world, including Peru, Spain, Norway, Greenland, and the U.S. among others.
This single-stage scale kit is nearly three feet tall and features a balsa transition and hard balsa nose cone, laser-cut fins, water-slide and self-adhesive decals and quick-change engine hook. You can fly this model on a wide range of engines, with fairly low altitudes on a C, but practically out-of-sight flights on an E! Designed primarily for 24mm C, D & E engines, it can also be flown on selected 18mm engines with an adapter (not included). A bright metallic parachute returns it to the ground for flight after flight.
Specifications:
Length: 34.65"/88 cm
Diameter: 1.385"/35.2 mm
Weight: 3.9 oz/110 gm
18" Parachute Recovery
Scale: approx. 1/12.5 (0.080)
Skill Level: Intermediate
Requires 3/16" Launch Rod
Center of Pressure: 19" from tip of nose
Recommended Engines: C11-3; D12-5; E9-6; E15-7; E20-7; F44-8; with EA 18/24 Adapter (not included): C6-3; C12-4; D16-6; D21-7
What you'll need to build this model:
Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Thin Cyanoacrylate [“CA”] is recommended for the parachute construction, but not required. Other adhesives [epoxy, CA, etc.] may be used if you are familiar with their use and prefer them.); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Felt Tip Marker; Masking Tape; Double-sided Cellophane ("Scotch") Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint (such as Rust-Oleum, Krylon, or Testors is recommended. Be sure not to mix different types or brands of paint without testing.) - primer (optional), white, black, red, silver & clear.
Recommended, but not required: Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Micro-Set or Micro-Sol).
The Black Brant VB is a Canadian sounding rocket designed to launch payloads to an altitude of 200 miles. First flown in 1965, over 180 have flown from launch sites all over the world.
The Black Brant VB has long been a favorite of scale modelers. This new scale kit is over two and a half feet tall and features a balsa nose cone, laser-cut basswood fins, water-slide decals and quick-change engine hook. Designed primarily for 24mm C, D & E engines, it can also be flown on selected 18mm engines with an adapter (not included). A bright metallic parachute returns it to the ground for flight after flight.
Specifications:
Length: 25.9"/65.8 cm
Diameter: 1.385"/35.2 mm
Weight: 3.5 oz/99 gm
18" Parachute Recovery
Scale: approx. 1/12.5 (0.080)
Skill Level: Intermediate
Requires 3/16" Launch Rod
Center of Pressure: 18.75" from tip of nose
Recommended Engines: C11-3; D12-5; E9-6; E12-6; E15-7; E20-7; F44-8; with an 18/24 Adapter (not included): D16-6
What you'll need to build this model:
Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Thin Cyanoacrylate [“CA”] is recommended for the parachute construction, but not required. Other adhesives [epoxy, CA, etc.] may be used if you are familiar with their use and prefer them.); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Felt Tip Marker; Masking Tape; Double-stick Cellophane ("Scotch") Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint (such as Rust-Oleum, Krylon, or Testors is recommended. Be sure not to mix different types or brands of paint without testing.) - primer (optional), white, red, brown & clear.
Recommended, but not required: Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Micro-Set or Micro-Sol).
What else you'll need to fly these models:
Electronic launch system; launch pad with 3/16" launch rod; recovery wadding; engines (see lists of recommended engines above).
The Black Brant III was a sounding rocket built by Bristol of Canada and designed to carry payloads to an altitude of over 100 miles. The first flights took place in June, 1962 at Wallops Island, VA. There were nearly 70 Black Brant III flights between that time and when the last one flew in 1985.
Like other vehicles in the Black Brant family, the Black Brant III has long been a favorite of scale modelers. This new scale kit is designed for 13mm "mini" engines, and features a hard balsa nose cone, laser-cut basswood fins, water-slide decals and parachute recovery.
Specifications:
Length: 16.65"/42.3 cm
Diameter: 0.785"/19.9 mm
Weight: 0.85 oz/24 gm
9" Parachute Recovery
Scale: approx. 1/13 (0.077)
Skill Level: Beginner/Intermediate
Center of Pressure: 12.85" from tip of nose
Recommended Engines: 1/2A3-2T; A3-4T; A10-3T
What you'll need to build this model:
Adhesives (Wood glue, such as Elmer’s Carpenters Glue, can be used throughout and is recommended for most construction. Thin Cyanoacrylate (CA) is recommended for some steps. Other adhesives [epoxy, cyanoacrylate, etc.] may be used if you are familiar with their use and prefer them); Hobby Knife with sharp #11 Blade; Ruler; Pencil; Masking Tape; Sandpapers (Medium - 180 or 220, Fine 320 or 400, & [optionally] Extra-Fine - 500 or 600); Sanding Sealer (or other balsa filler coat); Thinner (appropriate for the type of sanding sealer used); Small Paint Brush (to apply sealer); Spray Paint Rust-Oleum, Krylon, or Testors is recommended. Be sure not to mix different types or brands of paint without testing.) - primer (optional), white, red & clear (optional).
Recommended, but not required: Thin Cyanoacrylate (CA) Glue; Sanding Block; Tack Cloth.
Optional: Material to fill body tube seams and/or any imperfections in wood parts, such as Elmer’s Carpenters Wood Filler, Interior Spackling Paste, etc.; decal setting or solvent solution (such as Micro Set or Micro Sol).
What else you'll need to fly this model:
Electronic launch system; launch pad with 1/8" launch rod; recovery wadding; engines (see list of recommended engines above).
