Kits YOU Build!


Combo Pack of Four Thermal Seeker Duration Kits

SKU:
KTSCP



Retail Price: $53.80
ASP Price: $46.95 each
You Save $6.85!

Quantity:




One of each of our Thermal Seeker Duration kits - four kits total at a great price!

These kits feature lightweight vac-form plastic cones, quality spiral-wound body tubes, shock cords made of DuPont KEVLAR® & thin G10 fiberglass fins. Each kit comes with one of our "Hang Time" Competition recovery devices.

Parachute kits are made of thin 1/4 mil aluminized Mylar
®. The parachute size included with each kit is a good all - around size for the model size, but you may want  to use a larger or smaller size depending on flying conditions. To see other competition parachute sizes that are available click here.

The Streamer Duration kits include our "Hang Time" Tracing Paper Streamer Kits with enough materials to construct two streamers. The streamer size included with each kit is a good all - around size for the model size, but you may want  to use a larger or smaller size depending on flying conditions. Be sure to check out other sizes of tracing paper streamers and the Silver Dura-Lar streamers for more options!

Click here for an article that provides some tips on using our Tracing Paper streamers in competition models.

Included are one each Thermal Seeker 13 Streamer Duration, Thermal Seeker 13 Parachute Duration, Thermal Seeker 18 Streamer Duration, and Thermal Seeker 18 Parachute Duration kits.

Specifications:

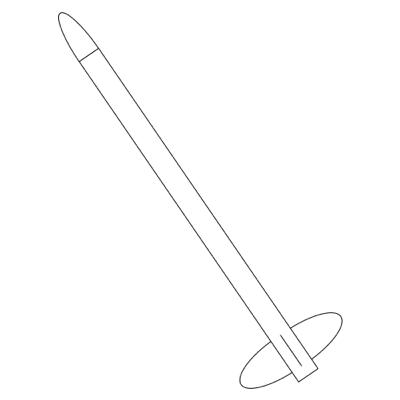

Thermal Seeker 13 Duration Kits

Length: 10.2"/25.9 cm
Diameter: .541"/13.74 mm
Approx. Weight (w/out recovery device): 0.25 oz/7 gm
Recommended Engines: 1/4A3 - 3T; 1/2A3 - 2T; 1/2A3 - 4T; A3 - 4T; A3 - 6T
Skill Level: Beginner/Intermediate
Recovery Devices: Streamer (4" X 40" Tracing Paper); Parachute (15" Mylar®)

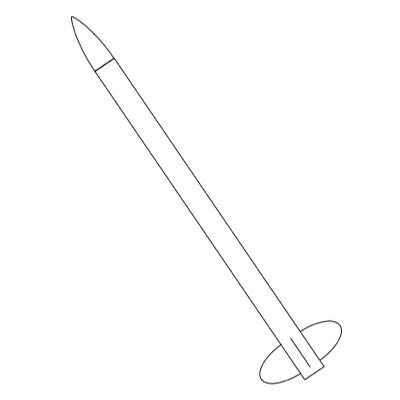

Thermal Seeker 18 Duration Kits

Length: 13.88"/35.3 cm
Diameter: .736"/18.7 mm
Approx. Weight (w/out recovery device): 0.37 oz/10.5 gm
Recommended Engines: 1/2A6 - 2; A3 - 6; A8 - 3; A8 - 5; B4 - 6; B6 - 6; C6 - 7; C12 - 8; D16 - 8
Skill Level: Beginner/Intermediate
Recovery Devices: Streamer (6" X 60" Tracing Paper); Parachute (18" Mylar®)

What you'll need to build these rockets:

Adhesives – thin viscosity cyanoacrylate ("CA") glue; hobby knife with a sharp #11 blade; sandpaper (medium - 220 or 280, fine - 320 or 400, & [optionally] extra fine - 500 or 600); pencil.
Recommended, but not required: sanding block; extender tip for cyanoacrylate glue.
Optional: accelerator for cyanoacrylate glue.

What else you'll need to fly these rockets:

Engines (see lists above); Recovery Wadding; Electronic Launch System and Launch Pad
