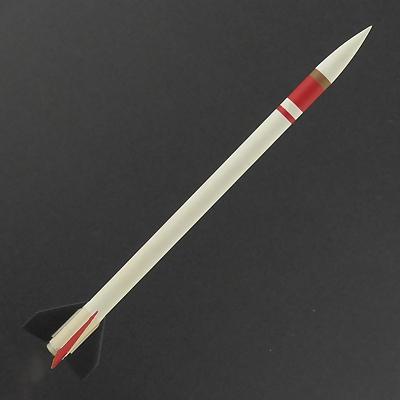

D - Region Tomahawk Model Rocket Kit (13mm Version)
The D - Region Tomahawk was flown early in 1968. This vehicle was intended to fly to the D layer of the ionosphere, thus the name "D - Region". Tomahawk rockets are used to this day as the upper stage of many sounding rocket flights.
The D - Region Tomahawk has long been a favorite of scale modelers. This minimum-diameter "Peanut Scale" kit flies on 13 mm "mini" engines and features basswood fins, balsa nose cone, decals, and streamer recovery.
This kit comes with laser-cut fins, water-slide decals and complete instructions!
Specifications:
Length: 11.65"/29.59 cm
Diameter: .541"/13.74 mm
Weight: 0.46 oz/13 gm
Streamer Recovery
Scale: approx. 1/16.6
Skill Level: Beginner
Recommended Engines: 1/4A3-3T; 1/2A3 - 2T; 1/2A3 - 4T; A3 - 4T
What you'll need to build this model:
Adhesive (A wood glue, such as Elmer's Carpenters Glue or Titebond can be used for most steps and is recommended. Cyanoacrylate or epoxy may be used throughout if you are familiar with their use); hobby knife with a sharp #11 blade; straight edge (preferably metal); scissors; masking tape; scotch tape; sanding sealer (or balsa fillercoat); thinner (appropriate type for the sanding sealer); small paint brush; paint (Spray paint, such as Krylon or Testors is recommended. Be sure not to mix different types or brands of paint without testing. ) - primer (optional), flat white, flat black, aluminum (note: silver may be used in place of the aluminum ), flat red, flat brown & flat clear (optional); sandpaper (medium - 220 or 280, fine - 320 or 400, & [optionally] extra fine - 500 or 600); ball point pen; pencil.
Recommended, but not required: sanding block; tack cloth.
Optional: material to fill body tube seams such as Elmer’s Fill & Finish, Elmer’s Professional Carpenter’s Wood Filler or interior spackling paste.
What else you'll need to fly this model:
Electronic launch system; launch pad with 1/8" launch rod; recovery wadding; engines (see list of recommended engines above).
